| Manufacturer | TE Connectivity AMP Connectors | |
|---|---|---|
| Series | #3, Buchanan | |
Packaging  | Bulk | |
| Part Status | Active | |

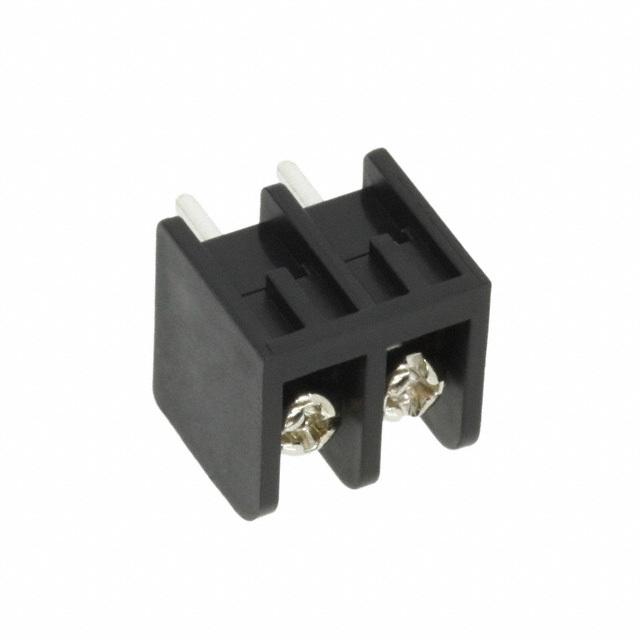

| Terminal Block Type | Barrier Block | |
| Number of Circuits | 2 | |
| Number of Wire Entries | 2 | |
| Pitch | 0.250" (6.35mm) | |
| Number of Rows | 1 | |
| Current Rating | 10A | |
| Voltage Rating | 300V | |
| Wire Gauge | 18-22 AWG | |
| Top Termination | Screws with Captive Plate | |
| Bottom Termination | PC Pin | |
| Barrier Type | 3 Wall (Tri) | |
| Features | - | |
| Color | Black | |
| Terminal Screw Material | Steel | |
| Terminal Screw Finish | Zinc | |
| Mounting Type | Through Hole | |
| Operating Temperature | 120°C | |
| Material - Insulation | Thermoplastic | |
| Material Flammability Rating | UL94 V-0 |
