| Manufacturer | Amphenol NEXUS Technologies | |
|---|---|---|
| Series | - | |
Packaging  | Bulk | |
| Part Status | Active | |

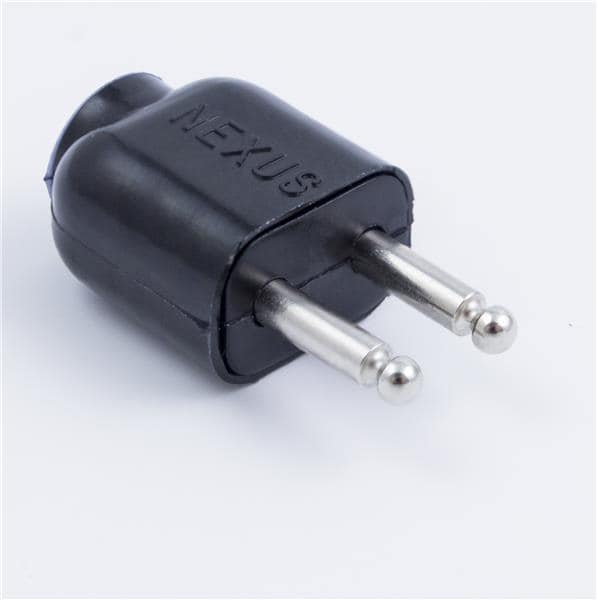

| Connector Type | Microphone Plug | |
| Gender | Male | |
| Signal Lines | Mono | |
| Industry Recognized Mating Diameter | - | |
| Actual Diameter | - | |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts | |
| Internal Switch(s) | Does Not Contain Switch | |
| Mounting Type | Free Hanging (In-Line) | |
| Termination | IDC | |
| Shielding | Unshielded | |
| Features | - | |
| Insulation Color | - | |
| Voltage - Rated | - | |
| Mating Length/Depth | - | |
| Contact Material - Plating | Nickel | |
| Body Material | - | |
| Body Color | Silver, Black | |
| Includes | 6 pcs - 1 Connector, 1 Clamp, 2 Contacts, 1 Handle, 1 Insert | |
| Housing Material | Polyamide (PA), Nylon | |
| Contact Material | Beryllium Copper | |
| Cable Opening | 0.175" (4.44mm) | |
| Panel Hole Size | - | |
| Thread Size | - | |
| Operating Temperature | - |
