| Manufacturer | Linear Technology/Analog Devices | |
|---|---|---|
| Series | LTM®, uModule® | |
Packaging  | Tray | |
| Part Status | Active | |
| Type | Non-Isolated PoL Module | |
| Number of Outputs | 6 | |
| Voltage - Input (Min) | 6V | |
| Voltage - Input (Max) | 36V | |
| Voltage - Output 1 | 1.2 ~ 24 V | |
| Voltage - Output 2 | 0 ~ 24 V | |
| Voltage - Output 3 | 0 ~ 24 V | |
| Voltage - Output 4 | 0 ~ 24 V | |
| Current - Output (Max) | 5A | |
| Applications | ITE (Commercial) | |
| Features | OTP, OVP, SCP, UVLO | |
| Operating Temperature | -40°C ~ 125°C | |
| Efficiency | - | |
| Mounting Type | Surface Mount | |

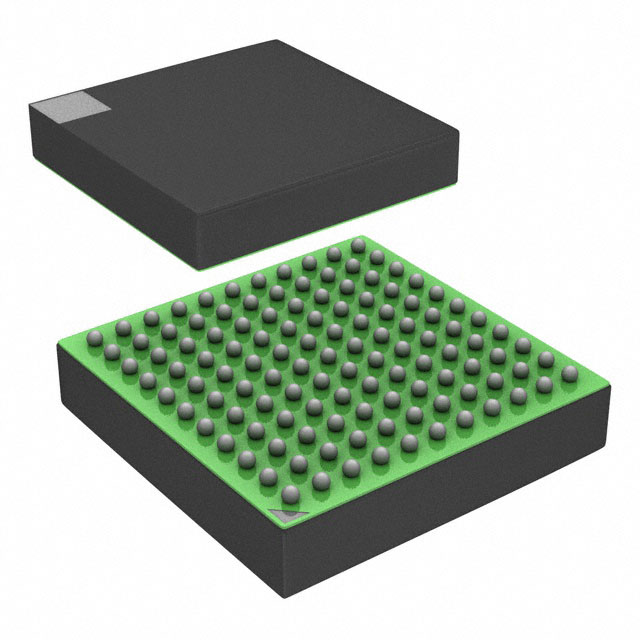

| Package / Case | 121-BBGA Module | |
| Size / Dimension | 0.59" L x 0.59" W x 0.14" H (15.0mm x 15.0mm x 3.6mm) | |
| Supplier Device Package | 121-BGA (15x15) | |
| Base Part Number | LTM8001 |
