Manufacturer | Texas Instruments | |
---|---|---|
Series | - | |
Packaging | Cut Tape (CT) | |
Part Status | Active | |
Output Configuration | Positive | |
Output Type | Adjustable | |
Number of Regulators | 1 | |
Voltage - Input (Max) | 35V | |
Voltage - Output (Min/Fixed) | 1.4V | |
Voltage - Output (Max) | 20.5V | |
Voltage Dropout (Max) | 0.45V @ 1A | |
Current - Output | 1A | |
Current - Quiescent (Iq) | 1mA | |
Current - Supply (Max) | 6.1mA | |
PSRR | 78dB (1kHz) | |
Control Features | Enable | |
Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | |
Operating Temperature | -40°C ~ 125°C | |
Mounting Type | Surface Mount | |

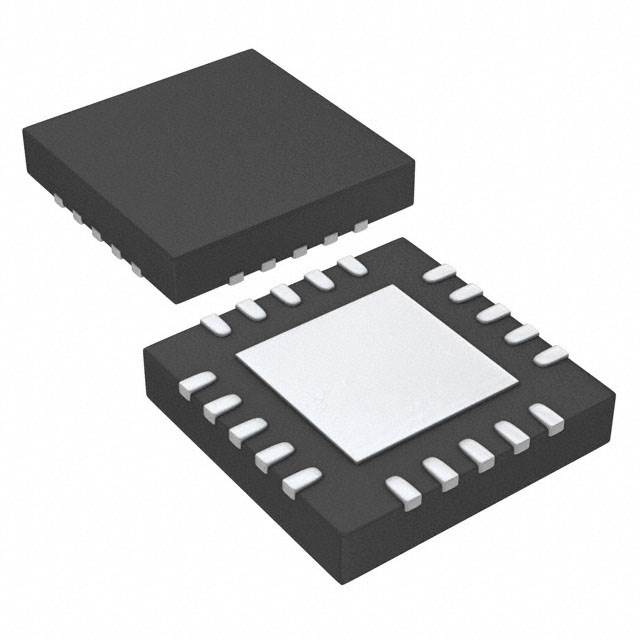

Package / Case | 20-VQFN Exposed Pad | |
Supplier Device Package | 20-VQFN (5x5) | |
Base Part Number | TPS7A4700 |
